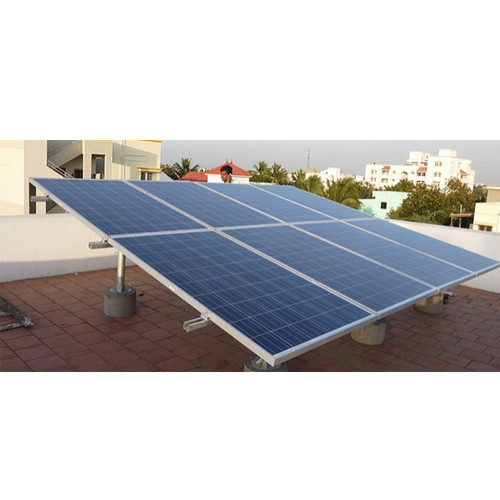

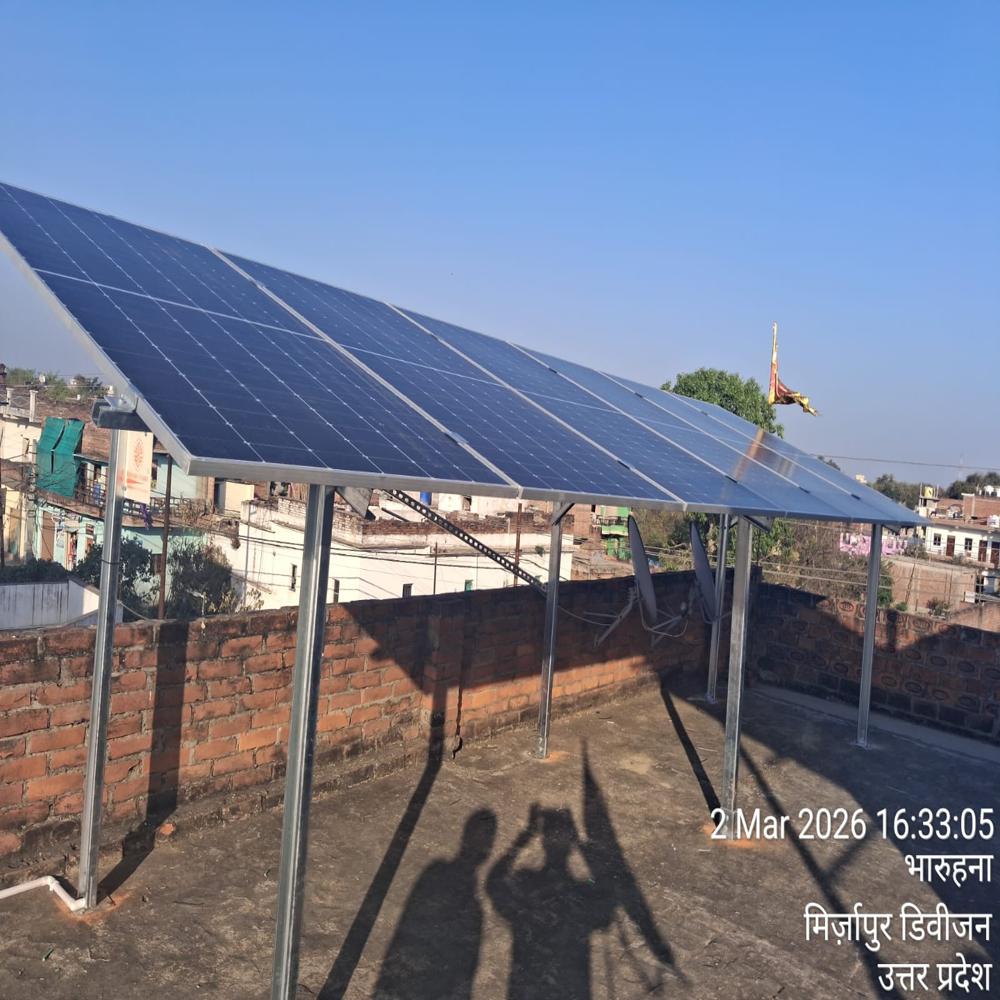

3kw PMSGY Solar Power Plant On-Grid System

3kW PM Surya Ghar (PMSGY) On-Grid Solar Power Plant

Ramasis Energy is a next-generation energy company delivering end-to-end, turnkey rooftop solar solutions under the trusted RAMASIS brand. Registered with UPNEDA under the PM Surya Ghar Muft Bijli Yojana and fully aligned with MNRE guidelines, we make the transition to solar simple, reliable, and rewarding.

Unlock savings of up to 1.08 lakh through MNRE subsidy on 310 kW rooftop solar systems, while reducing your electricity bills and carbon footprint. From design and installation to commissioning and support, Ramasis Energy ensures a seamless solar journey.

  On-Grid Solar Power Plants: Ramasis On-Grid Solar Power Plants convert sunlight into clean, renewable electricity and are directly connected to the utility grid. Excess power generated is fed back into the grid through net metering, ensuring optimal energy utilization, reduced electricity bills, and a greener future.

Key Features:

         Generates clean electricity directly from sunlight

         Excess energy is exported to the grid through net metering

         Automatic Power Export & Import with Grid

         Low maintenance with long system life

         Environment-friendly and cost-effective solution with no battery requirement

         Custom-engineered as per site and customer requirements.

General Details

• Product Name: 3kW On-Grid Solar Power Plant (PM Surya Ghar Muft Bijli Yojana)
• Technology Type: Mono PERC / TOPCon (High Efficiency Modules)
• Installation Type: Rooftop / Ground Mounted
• Application Use: Residential homes, small offices, shops, rural electrification

Electrical Specifications

• Power in Watt: 3000 Watt (3kW)
• Output Voltage: 230V AC (Single Phase)
• Input Voltage (DC): 300V 600V
• Max Voltage (System): 1000V DC
• Switch Mode: Automatic Grid Synchronization (On-Grid Inverter)
• Efficiency: Up to 97% 98%

Environmental & Performance

• Operating Temperature: -10C to +55C
• Weather Protection: IP65 Rated (Inverter)
• Performance Warranty: 25 Years (Solar Panels)

Physical Specifications

• Material:
• Structure: Hot Dip Galvanized Iron / Aluminum
• Panels: Tempered Glass + EVA + Backsheet
• Panel Size: Approx. 2000 1000 mm (per panel)
• Total Area Required: 180 250 sq. ft.
• Cable Length: 10 20 meters (customizable)
• Color: Blue / Black (Panels), Silver (Structure)
• Weight: Approx. 300 450 Kg (Complete System)

Module Details

• Number of Cells: 144 Half-Cut Cells
• Module Wattage: 540W 550W (approx.)
• No. of Panels: 5 6 Panels

Package Dimensions (Complete System)

• Transport Size (Approx.):
• Length: 2000 2200 mm
• Width: 1000 1200 mm
• Height: 1200 1500 mm
• Packaging Type: Wooden rate / Pallet Packing

Installation & Maintenance

• Installation Time: 1 3 Days
• Maintenance Type: Low Maintenance (Periodic cleaning required)
• Monitoring: Mobile App / WiFi Enabled

Warranty

• Solar Panel: 25 Years Performance Warranty
• Inverter: 5 10 Years
• Structure: 5 Years

Features

• Net Metering Compatible
• No Battery Required (On-Grid)
• Real-Time Monitoring
• High Savings on Electricity Bill
• Government Subsidy Applicable (PMSGY Scheme)

Future Scope

• Expandable to higher capacity (5kW / 10kW)
• Hybrid upgrade possible (battery add-on)
• Smart energy management compatible
